Module Package Design Practices in a Monorepo

Published:  at  16:00

Module Package Design Practices in a Monorepo

Preface

This article is mainly for frontend and Node.js developers. It discusses, through practical examples, how to organize applications and modules in a Monorepo:

  1. How to design a shared configuration package (configs, types, utils, enums, etc.) that can be used simultaneously in frontend, Node.js, Vite, and other projects
  2. How should a UI component library be bundled? How can a component library support server-side rendering (SSR)? What are some good best practices?
  3. How can we use module packages written in native languages such as Rust / C++ / Golang?

The demo repository for this article is available at: monorepo (using pnpm; other Monorepo tools work similarly)


Why design module packages?

As more and more code accumulates in a Monorepo, especially with multiple people collaborating, you will inevitably encounter the following problems:



What types of module packages are there?

For historical reasons, JavaScript module systems have never had a unified specification. The rough evolution is: CJS → AMD → CMD → UMD → ESM. This introduces quite a bit of trouble when designing a module used across applications.

Before designing a module package, it is necessary to first understand the mainstream module types and specifications today (esm, cjs, umd).


Module type/format/specification

Description

Export syntax

Usage syntax

Notes

esm（ES Modules）

JavaScript’s official standardized module system (draft), which took nearly 10 years to standardize.
Applicable to:
* Browser
* Node.js ≥ 12.17

export default foo
export const foo = 1;
export { bar as foo } from ”

import foo from ‘name’
import { foo } from ‘name’
import { foo as bar } from ‘name’


* JS standard; prefer using this module format
* Tree Shaking friendly

cjs（CommonJS）

Node.js module standard; each file is a module.
Applicable to:
* Node.js

module.exports = foo
exports .foo = 1;

const foo = require (‘name’);
const { foo } = require(‘name’);

* Not Tree Shaking friendly
* Frontend projects can also use the cjs format, relying on build tools (webpack / rollup)

umd（Universal Module Definition）

Strictly speaking, umd is not a specification; it is just a community-created generic format that combines package modules and is compatible with CJS and AMD formats.
On the browser side, it is used to mount global variables (such as window.*)
Applicable to:
* Browser (external scenarios)
* Node.js (less common)

(function (root, factory) {
if (// amd) {
} else if (//cjs) {
} else (//global) {
}
})(this, function() {})

window.React
window.ReactDOM
$

Based on the module comparison above, the best practice for choosing a module specification at this stage is:

package.json module declarations

If module design is an art, then package.json is the instruction manual for that art! In actual development, many developers cannot correctly configure package.json.

Basic information

Most fields come from the official npm definition and describe the basic information of a package:

// package.json
{
    // 包名（示例：import {} from 'your-lib'）
    "name": "your-lib",
    "version": "1.0.0",
    "description": "一句话介绍你的包",
    // 发布到 npm 上的目录，不同于 `.npmignore` 黑名单，`files` 是白名单
    "files": ["dist", "es", "lib"],
    // 安全神器，不发到 npm 上
    "private": true,

    /**
     * 包依赖
     */
    // 运行时依赖，包消费者会安装的依赖
    "dependencies": {
        "lodash": "^4.17.21",
        // ❌ "webpack": "^5.0.0",
        // ❌ "react": "^17.0.0" 不推荐将 react 写进依赖
    },
    "peerDependencies": {
       "react": "^16.0.0 || ^17.0.0",
       "react-dom": "^16.0.0 || ^17.0.0"
    },
    // 开发时依赖，使用方不会安装到，只为包开发者服务
    "devDependencies": {
        "rollup": "^2.60.2",
        "eslint": "^8.5.0",
        "react": "^16.0.0",
        "react-dom": "^16.0.0"
    }
}

Points to note here:

version

Follow semver semantic versioning (validation tool). The format is generally {major}.{minor}.{patch}.

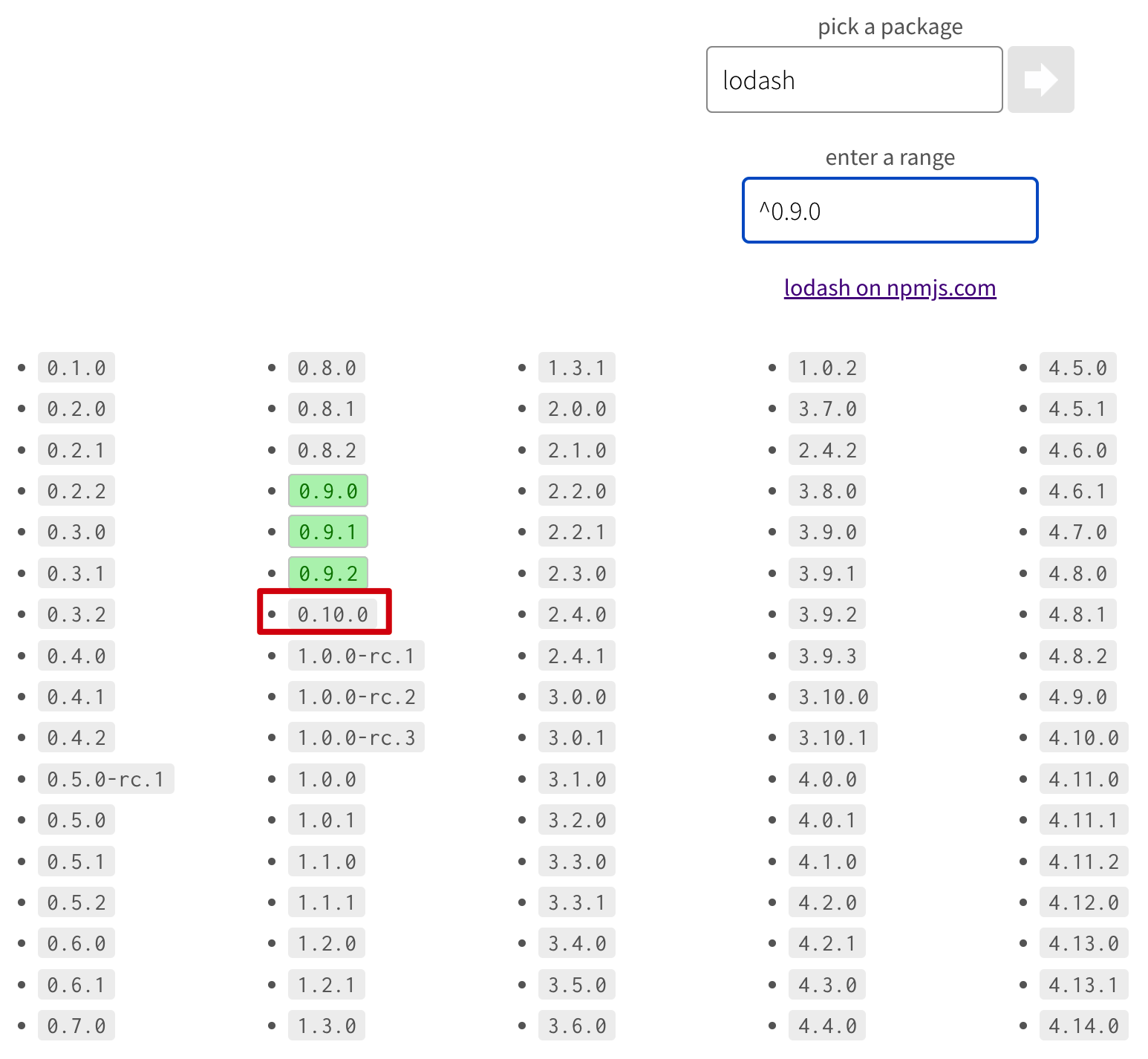

Let’s look at a few error-prone examples:


dependencies, devDependencies, peerDependencies

Dependencies of a module package are something many module developers easily get wrong. Here, producer refers to the module package developer, and consumer refers to the application using the module package.

private

For packages that should not be published, remember to set this to true to avoid accidentally running npm publish and publishing them externally, causing security issues.

# packages/private/package.json
{
  "private": true
}

$ npm publish
npm ERR! code EPRIVATE
npm ERR! This package has been marked as private
npm ERR! Remove the 'private' field from the package.json to publish it.

Module types

Declare which module format the current package belongs to (cjs, esm), and load different module types under different conditions. The configuration fields come from:

Single entry (main, module, browser)

If it is a single-entry package and is always exported from the package name via import from 'your-lib', you can configure it as follows:

{
    // -----单入口----
    // 入口文件（使用 cjs 规范）
    "main": "lib/index.js",
    // 入口文件（使用 esm 规范）
    "module": "es/index.js",
    // 包类型导出
    "typings": "typings/index.d.ts",
    // 浏览器入口
    "browser": "dist/index.js",
    "sideEffects": false
}

Parameter descriptions:

Multiple entries (exports, browser)

For multi-entry packages, such as import from 'your-lib/react' and import from 'your-lib/vue', the recommended configuration is:

{
     // ----多入口---
    "exports": {
        "./react": {
            "import": "dist/react/index.js",
            "require": "dist/react/index.cjs"
        },
        "./vue": {
            "import": "dist/vue/index.js",
            "require": "dist/vue/index.cjs"
        }
    },
    "browser": {
        "./react": "dist/react/index.js",
        "./vue": "dist/vue/index.js"
    },
    "sideEffects": false
}

Parameter descriptions:

After understanding package.json, let’s start from common module packages and see how to design them.

How to design module packages?

Initialize a Monorepo sample project (including apps and packages). The directory structure is as follows (where apps contains common application types):

- apps（前端、后端）
    - deno-app
    - next-app
    - node-app
    - react-app
    - umi-app
    - vite-app
    - vite-react-app
- packages（模块包）
    - shared（共享配置模块）
        - configs
            - tsconfig.base.json
        - types
        - utils
            - index.ts
        - package.json
    - ui（组件库）
        - react
        - vue
        - package.json
    - native（Rust/C++ 原生模块编译成 npm，用在 Node.js）
        - src
            - lib.rs
        - package.json
- .npmrc
- package.json
- pnpm-workspace.yaml

The design of each module package is introduced in the following steps:

  1. How to use it in an application?
  2. How to build it?
  3. How to configure package.json?
  4. Result demonstration

Shared configuration module (packages/shared)

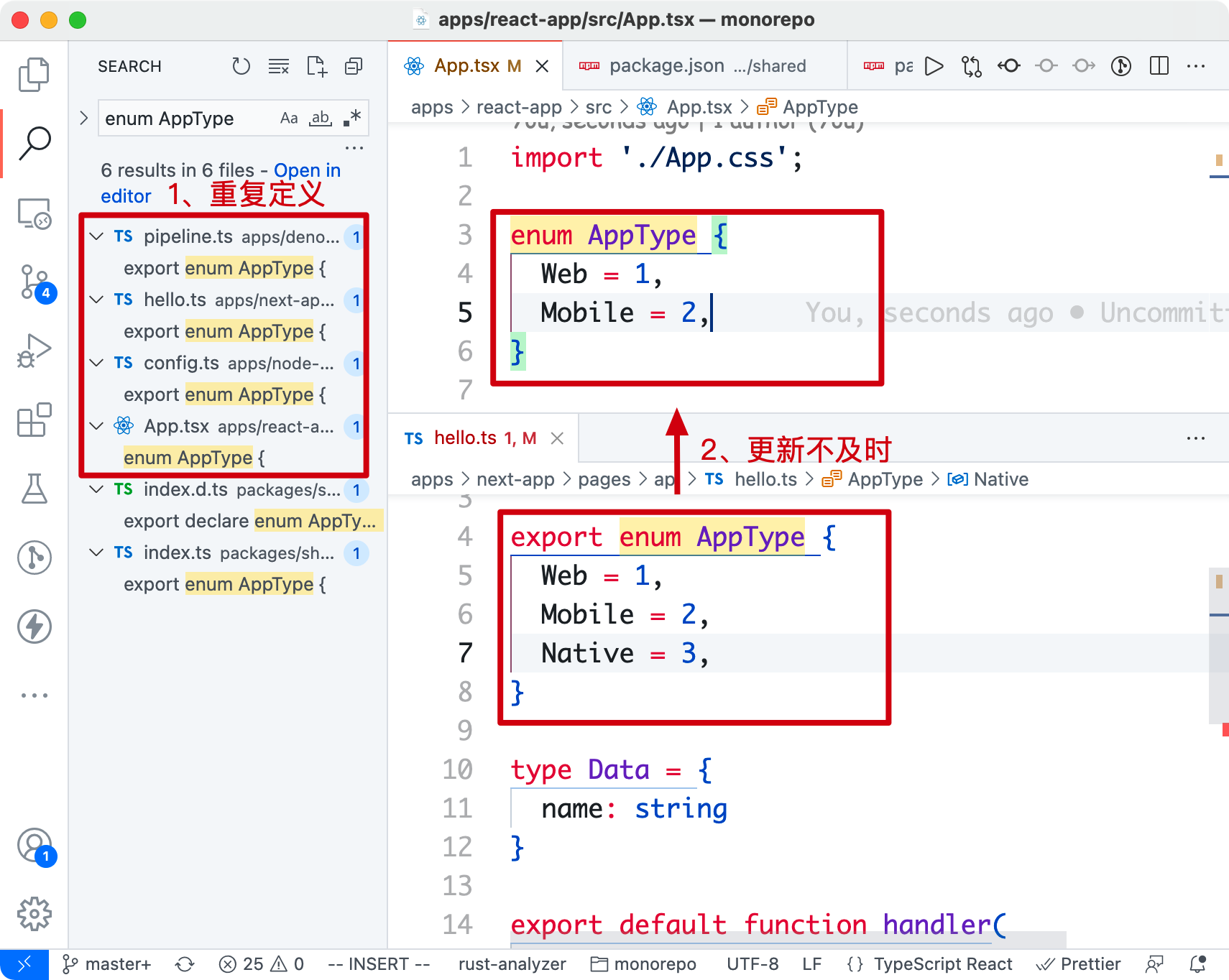

Now we want to solve reuse of enums, configs, and utility methods, and hope they can be used in all projects at the same time.

Usage

Usage in applications is as follows:

  1. Declare the module dependency in the project. workspace:* means using the shared module package from the current Monorepo.
// apps/*/package.json
{
  "dependencies": {
     "@infras/shared": "workspace:*"
  }
}

To make it more convenient to debug Monorepo package modules, we use the pnpm workspace protocol here (yarn also supports this protocol).

  1. Use import in the project to reference the esm format, require to reference the cjs format, and common project configs such as tsconfig.json.
// apps/*/index.{ts,tsx,jsx}
import { AppType } from '@infras/shared/types';
import { sum } from '@infras/shared/utils';

console.log(AppType.Web); // 1
console.log(sum(1, 1));   // 2

// apps/*/index.js
const { AppType } = require('@infras/shared/types');
const { sum } = require('@infras/shared/utils');

// apps/*/tsconfig.json
{
- "extends": "../../../tsconfig.base.json"
+ "extends": "@infras/shared/configs/tsconfig.base.json"
}

Build esm and cjs formats

As mentioned above, we ultimately produce both esm and cjs packages so consumers can use them as needed. So which build tool should we use?

Available compilation/bundling tools here:

Difference between the two: compilation (a → a’, b → b’), bundling (ab → c, All in One)

After practice, we chose tsup, which can quickly and conveniently build esm and cjs packages out of the box, with types included.

Why use tsup instead of tsc/rollup/babel: shared configuration modules can actually be solved with tsc alone, and do not need rollup’s rich ecosystem. Tool configuration is also verbose and troublesome. Another point is that tsup is faster in terms of compilation and bundling speed.

The bundling configuration tsup.config.ts is as follows:

// packages/shared/tsup.config.ts
import { defineConfig } from 'tsup';

export default defineConfig({
  entry: ['utils/index.ts', "types/index.ts"],
  clean: true,
  dts: true,
  outDir: "dist",
  format: ['cjs', 'esm']
});

Running **tsup** will generate the **dist** directory, with the following structure:

# packages/shared
- dist
    - utils
        - index.js（cjs）
        - index.mjs（esm）
    - types
        - index.js
        - index.mjs
- utils
- types
- package.json

Note: The reason the multi-entry utils and types directories are not placed under src is to provide better TS type support in Monorepo projects! In practice, this is a sleight of hand: type hints point to source ts files, while actual usage points to the dist output directory, for example:

- shared

- dist

- react

- index.js (entry loaded by application builds)

- react

- index.ts (entry for editor type hints)

package.json

The package.json for a general-purpose module package is as follows. Since it has multiple entries, the combination of exports and browser is used here to export cjs and esm format packages.

// packages/shared/package.json
{
  "name": "@infras/shared",
  "version": "0.0.1",
  "description": "An infrastructure monorepo shared library for all projects and apps.",
  "browser": {
    "./types": "./dist/types/index.mjs",
    "./utils": "./dist/utils/index.mjs"
  },
  "exports": {
    "./types": {
      "import": "./dist/types/index.mjs",
      "require": "./dist/types/index.js"
    },
    "./utils": {
      "import": "./dist/utils/index.mjs",
      "require": "./dist/utils/index.js"
    }
  },
  "scripts": {
    "prepare": "npm run build",
    "dev": "tsup --watch",
    "build": "tsup"
  },
  "devDependencies": {
    "tsup": "^5.10.3"
  }
}

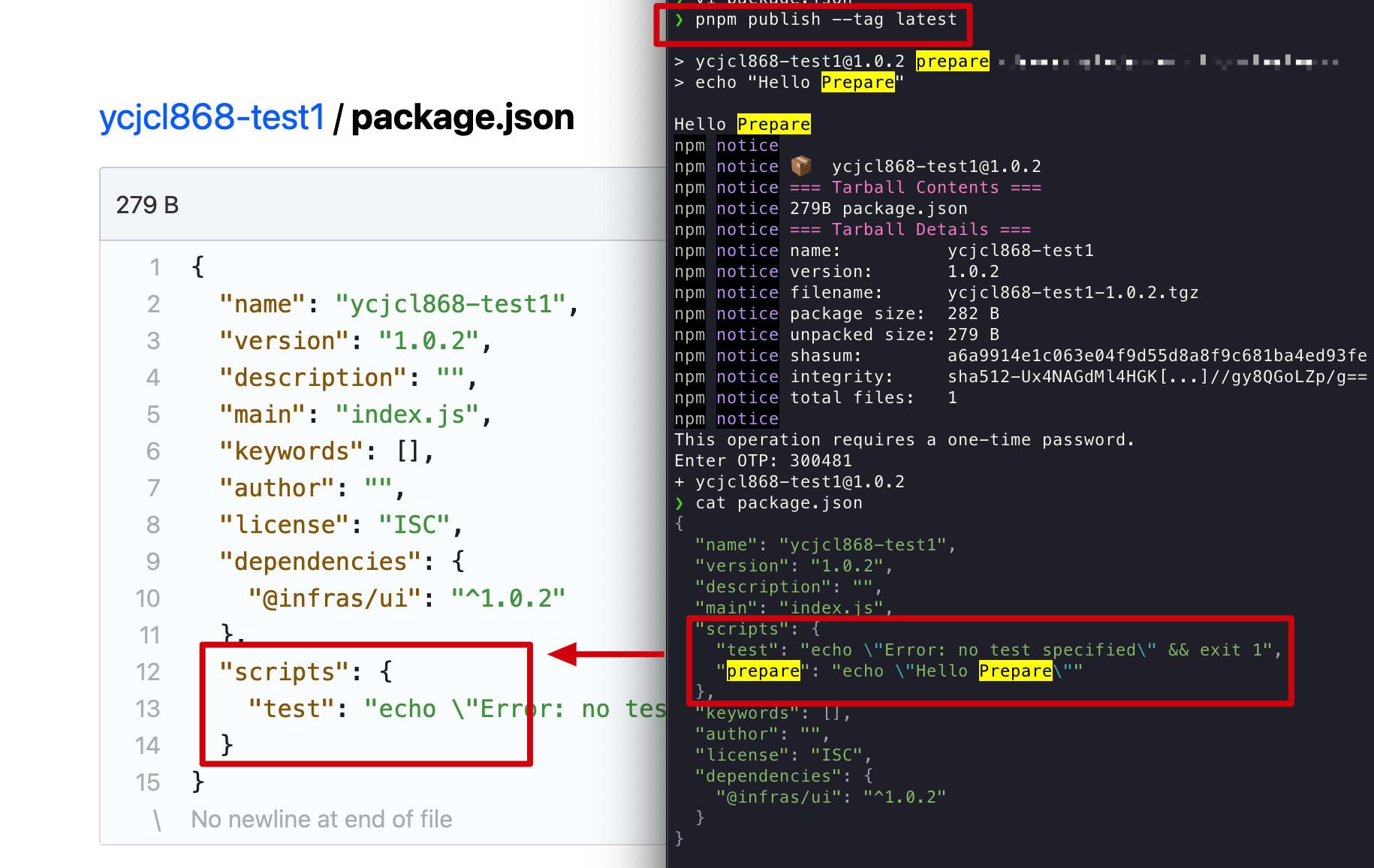

Also, when using pnpm publish to publish a package, scripts.prepare will be removed (source implementation)


Running

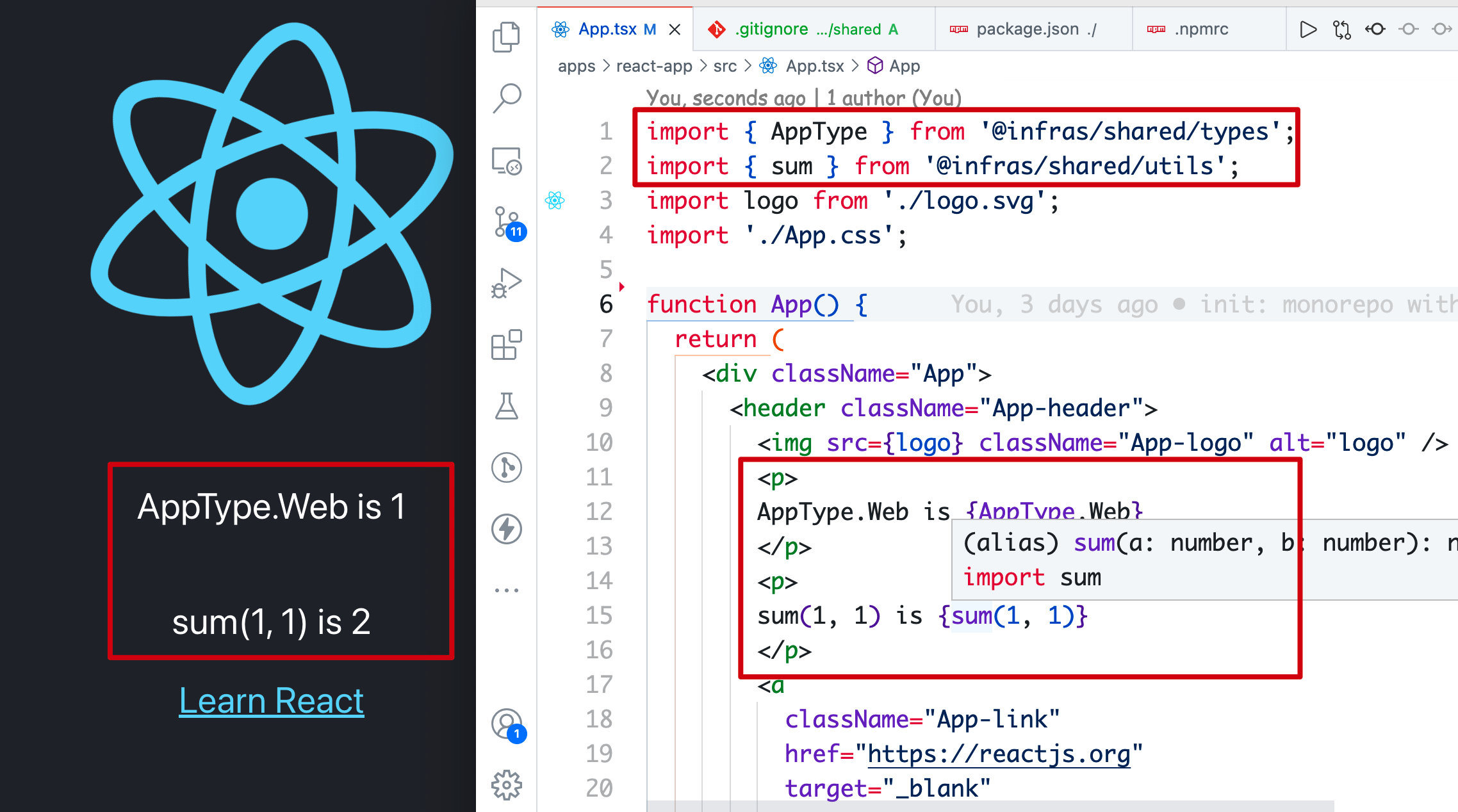

Use it in a frontend project: pnpm start --filter "react-app"

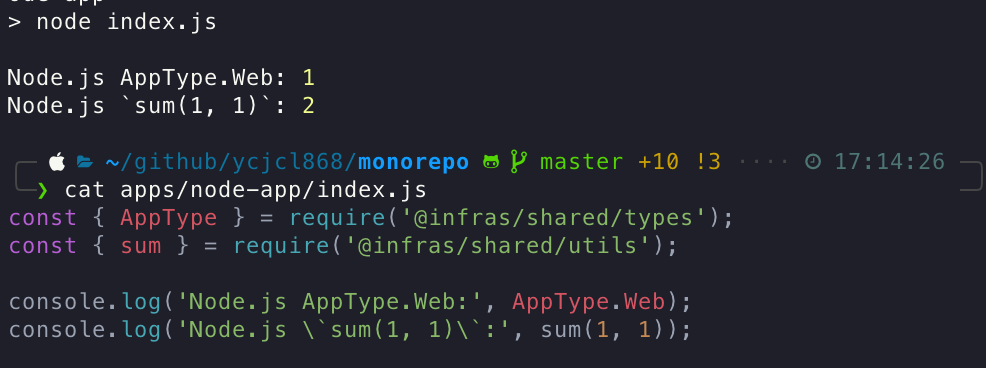

Use it in a Node.js project with pnpm start --filter "node-app":

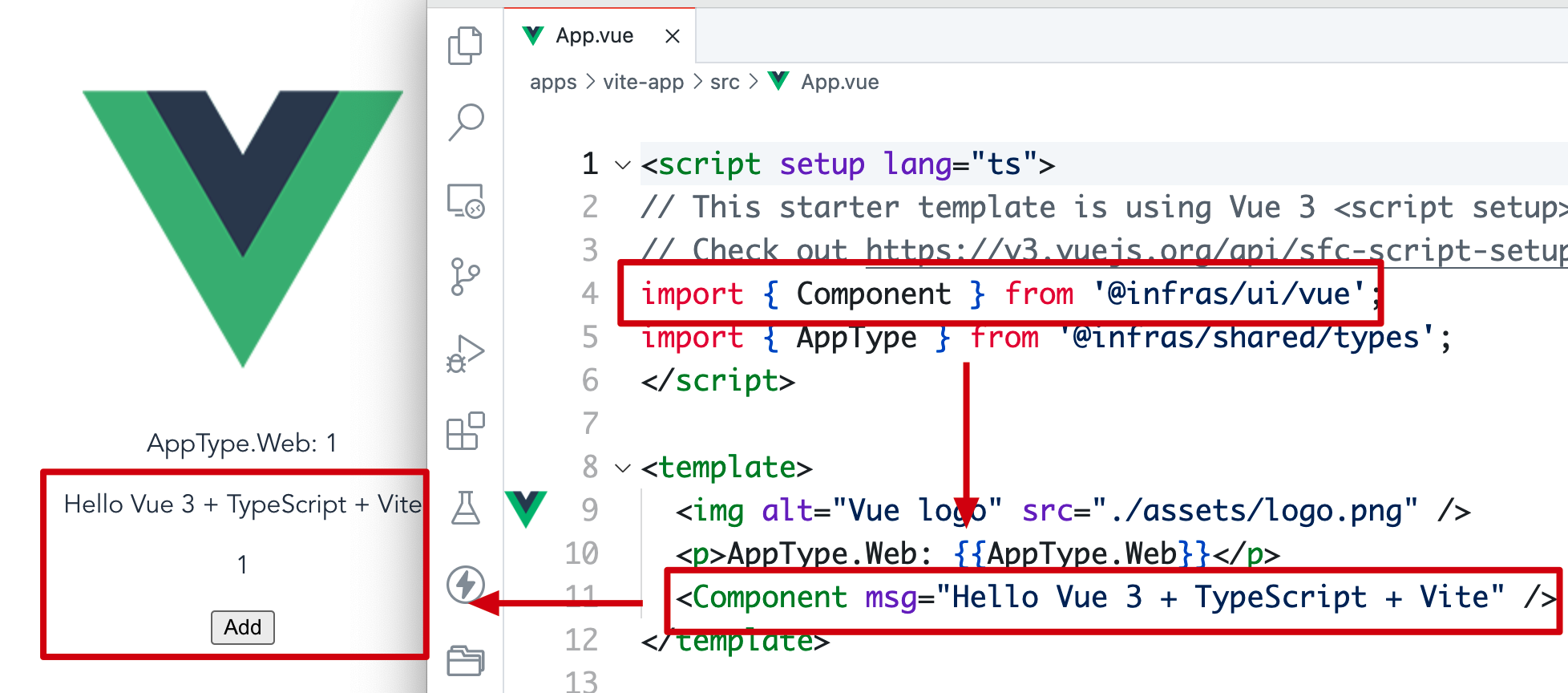

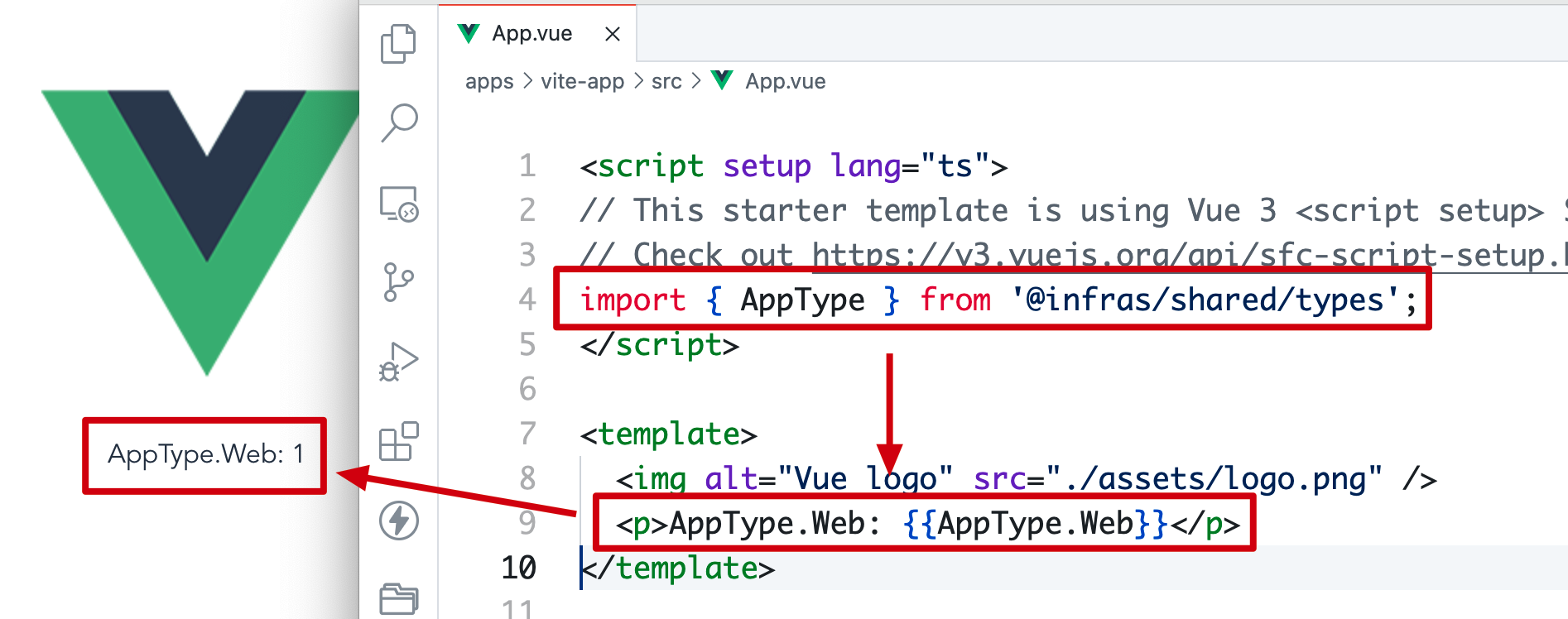

Use it in Vite with pnpm start --filter "vite-app":


UI component library module (packages/ui)

In a Monorepo micro-frontend architecture, reusing component libraries can effectively improve R&D efficiency.

Usage

Applications/projects import it as follows:

  1. Declare the module dependency in the project. workspace:* means using the ui module package from the current Monorepo. If it is not a Vite application, you need to configure dependenciesMeta['``@infras/ui'].``injected: true
// apps/*/package.json
{
  "dependencies": {
     "@infras/ui": "workspace:*"
  },
  // 非 Vite 应用
  "dependenciesMeta": {
    "@infras/ui": {
      "injected": true
    }
  }
}

Origin of dependenciesMeta

The dependenciesMeta configuration here is very interesting. It comes from pnpm (≥ 6.20) and is used to solve the Invalid hook call problem caused by multiple React version instances in a Monorepo.

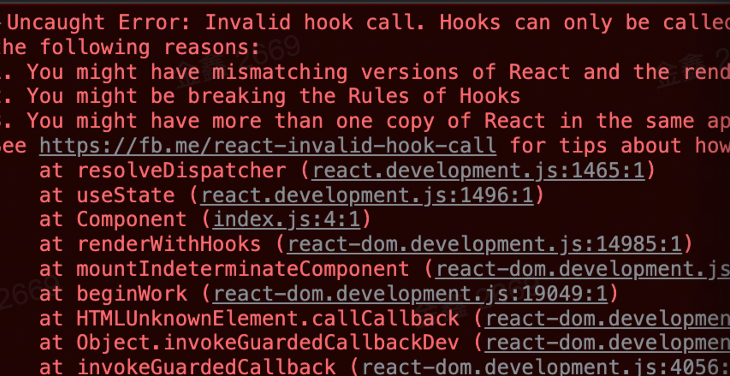

The cause of the issue is that the React version in the UI component library’s devDependencies differs from the React version in the application. In the dependency structure below, the application uses React@17, while the component library uses React@16. (Issues: react#13991, pnpm#3558, rushstack#2820, component multiple instance problem, etc.):

--- react-app
 |  |- react@17.0.0
 |- @infras/ui
 |  |- react@16.0.0 <- devDependencies

Before this, there were two approaches to solving this problem:

The dependenciesMeta introduced after pnpm 6.20 essentially hard-links the UI component library package into the application, solving the problems of local development for react component libraries and peerDependencies:

 apps
   node_modules
     @infras/ui
-      node_modules

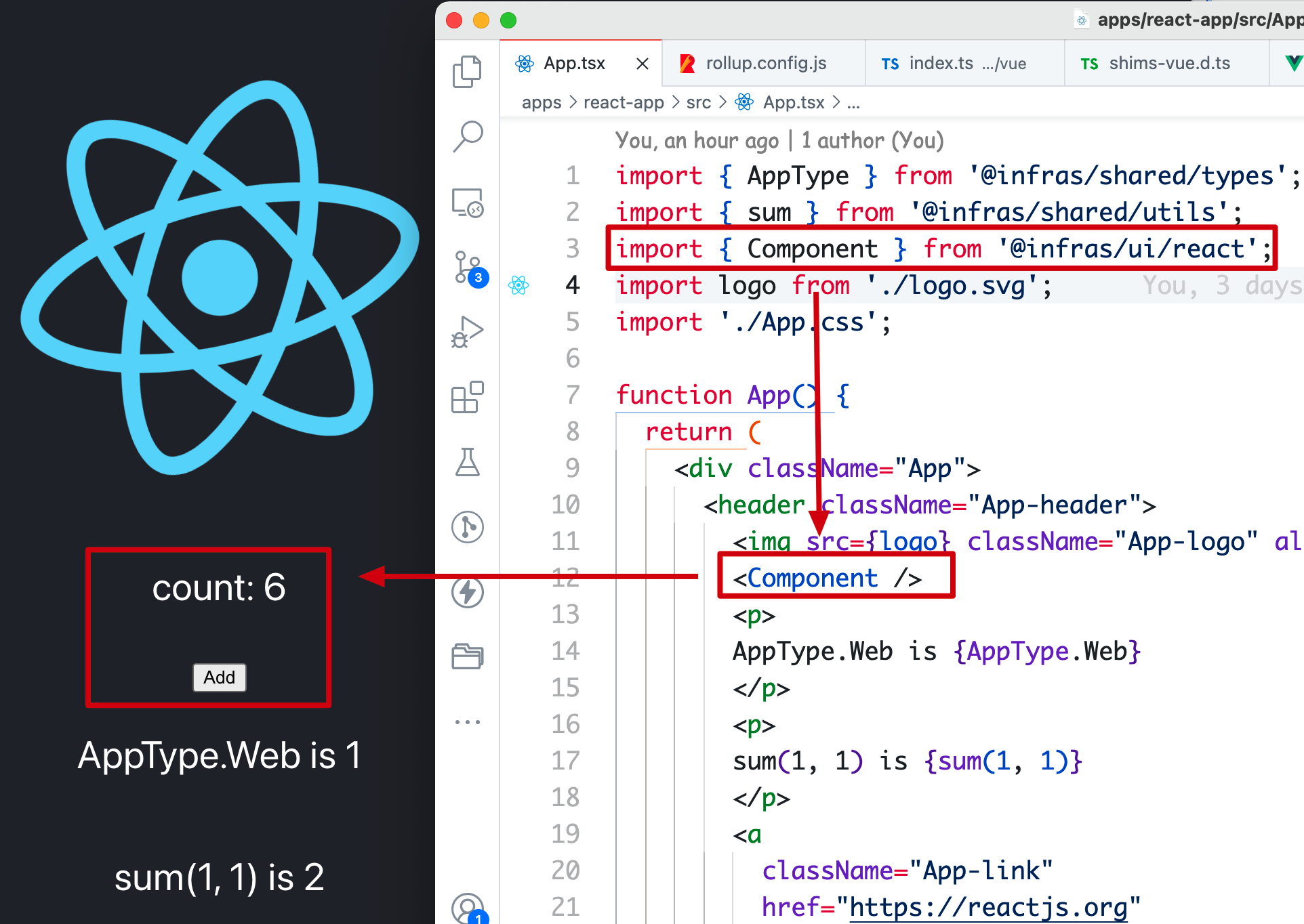

  1. Frontend usage: import the component library in React and Vue projects respectively
// React 应用： apps/*/index.{ts,tsx,jsx}
import { Component } from '@infras/ui/react';
<Component />

// Vue 应用： apps/*/index.vue
<script setup lang="ts">
import { Component } from '@infras/ui/vue';
</script>
<template>
    <Component />
</template>

For components from different frontend frameworks, it is not recommended to export them from a single entry (i.e. import { ReactC, VueC } from 'ui'), because this makes on-demand compilation in applications much more troublesome!

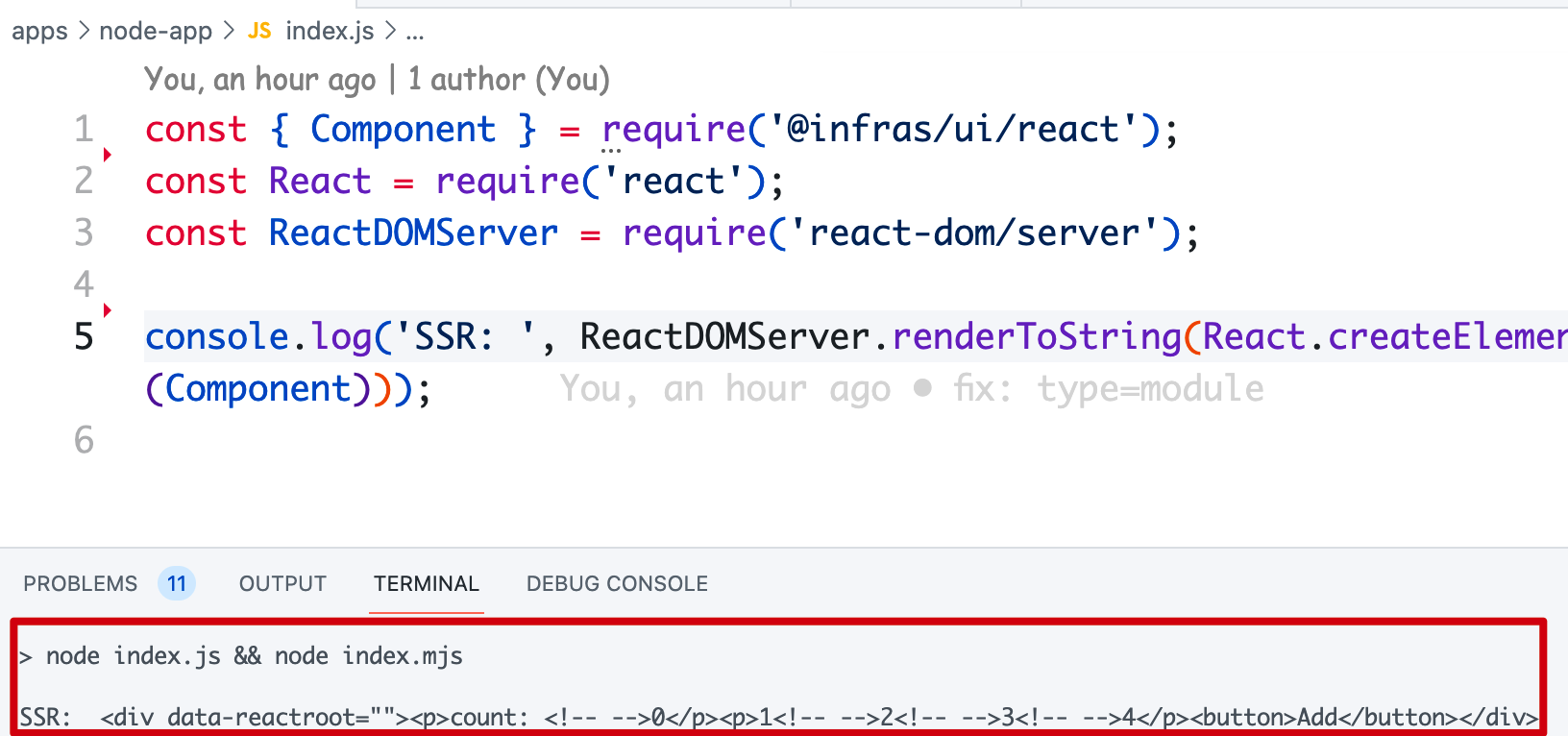

  1. Server-side rendering for components
// apps/node-app/index.js
const { Component } = require('@infras/ui/react');
const React = require('react');
const ReactDOMServer = require('react-dom/server');

console.log('SSR: ', ReactDOMServer.renderToString(React.createElement(Component)));

To build both React and Vue component library modules, the package directory is roughly designed as follows:

# packages/ui
- react
    - Component.tsx
    - index.ts
- vue
    - Component.vue
    - index.ts
- package.json

Build esm, cjs, and umd

A quick question: why do large component libraries generally need to build cjs format, and what scenario does it target?

Choose Rollup to bundle both React and Vue component libraries. There are several points to note:

The rollup configuration is as follows:

// packages/ui/rollup.config.js
import { defineConfig } from 'rollup';
...

export default defineConfig([
  {
    input: 'react/index.tsx',
    external: ['react', 'react-dom'],
    plugins: [...],
    output: [
      {
        name,
        file: './dist/react/index.js',
        format: 'umd',
        globals: {
          react: 'React',
          'react-dom': 'ReactDOM'
        }
      },
      {
        name,
        file: './es/react/index.js',
        format: 'es',
      },
      {
        name,
        file: './lib/react/index.cjs',
        format: 'commonjs',
      }
    ]
  },
  {
    input: 'vue/index.ts',
    external: ['vue'],
    plugins: [...],
    output: [
      {
        name,
        file: './dist/vue/index.js',
        format: 'umd',
        globals: {
          vue: 'vue',
        }
      },
      {
        name,
        file: './es/vue/index.js',
        format: 'es',
      },
      {
        name,
        file: './lib/vue/index.cjs',
        format: 'commonjs',
      }
    ]
  }
])

After running rollup --config rollup.config.js, the **dist**, **es**, and **lib** directories will be generated:

# packages/ui
- dist
    - react
    - vue
- es
    - react
    - vue
- lib
    - react
    - vue
- react
- vue
- package.json

package.json

The package.json of the component library is also multi-entry. Like the general-purpose module, it uses a combination of exports to export packages in cjs, esm, and umd formats.

{
  "name": "@infras/ui",
  "version": "1.0.0",
  "description": "An infrastructure monorepo ui library for all front-end apps.",
  "browser": {
    "./react": "./es/react/index.js",
    "./vue": "./es/vue/index.js"
  },
  "exports": {
    "./react": {
      "import": "./es/react/index.js",
      "require": "./lib/react/index.cjs",
      "default": "./dist/react/index.js"
    },
    "./vue": {
      "import": "./es/vue/index.js",
      "require": "./lib/vue/index.cjs",
      "default": "./dist/vue/index.js"
    }
  },
  "scripts": {
    "start": "npm run dev",
    "dev": "rollup --config rollup.config.js --watch",
    "build": "rollup --config rollup.config.js",
    "prepare": "npm run build",
    "prepublishOnly": "npm run build"
  },
  "peerDependencies": {
    "react": "^16.0.0 || ^17.0.0",
    "react-dom": "^16.0.0 || ^17.0.0",
    "vue": "^3.0.0"
  },
  "devDependencies": {
    "typescript": "^4.5.2",
    "@babel/...": "",
    "rollup/...": "^2.60.2"
  }
}

There is one especially important point to note in the package.json declaration for component libraries:

{
+ "browser": {
+   "./react": "./es/react/index.js",
+   "./vue": "./es/vue/index.js"
+ },
}

Reason: Webpack below 5 does not support the exports configuration webpack#9509. Webpack 4 prioritizes browser, while Webpack 5 prioritizes exports.

Running

Start the React application (pnpm start --filter "react-app"):


Start the Vue application (pnpm start --filter "vite-app"):


Server-side rendering (pnpm start --filter "node-app"):


Native language modules (packages/native)

Interestingly, we can use npm package modules written in Rust / Golang in a Monorepo to handle CPU-intensive tasks.

Usage

Usage in a Node.js application is as follows:

  1. Declare the native language module dependency in the project
// apps/node-app/package.json
{
  "dependencies": {
     "@infras/rs": "workspace:*"
  }
}
  1. Call it in Node.js:
// apps/node-app/index.js
const { sum } = require('@infras/rs');
console.log('Rust \`sum(1, 1)\`:', sum(1, 1)); // 2

// apps/node-app/index.mjs
import { sum } from '@infras/rs';

Build cjs

Here we use napi-rs to initialize an npm module package built with Rust. napi-rs does not build an esm-format package; instead, it chooses cjs format to be compatible with esm (related: node#40541).

# packages/rs
- src
    - lib.rs
- npm
- index.js
- index.d.ts
- package.json
- Cargo.toml

package.json

The package.json initialized directly by napi-rs can be used without modification.

{
  "name": "@infras/rs",
  "version": "0.0.0",
  "type": "commonjs",
  "main": "index.js",
  "types": "index.d.ts",
  "devDependencies": {
    "@napi-rs/cli": "^2.0.0"
  },
  "scripts": {
    "prepare": "npm run build",
    "artifacts": "napi artifacts",
    "build": "napi build --platform --release",
    "build:debug": "napi build --platform",
    "version": "napi version"
  }
}

Running

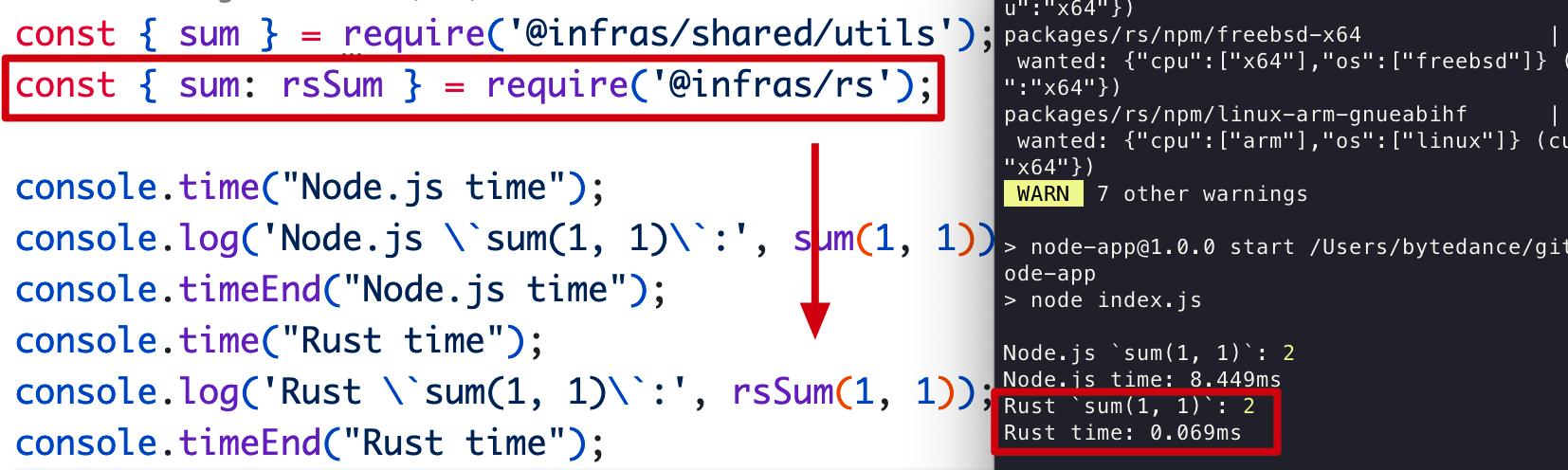

Run pnpm start --filter "node-app" in the Node project. As shown, the function compiled from Rust executes much faster than native Node.js (8.44 ms → 0.069ms).


Publishing module packages

If you need to publish packages, there are two approaches:

Publishing from the command line

To publish non-private: true module packages in the Monorepo to the npm registry, the simplest way is to run the publish command.

$ pnpm -r publish --tag latest

If you want to add a changelog for package publishing, refer to using-changesets

Publishing from the platform side

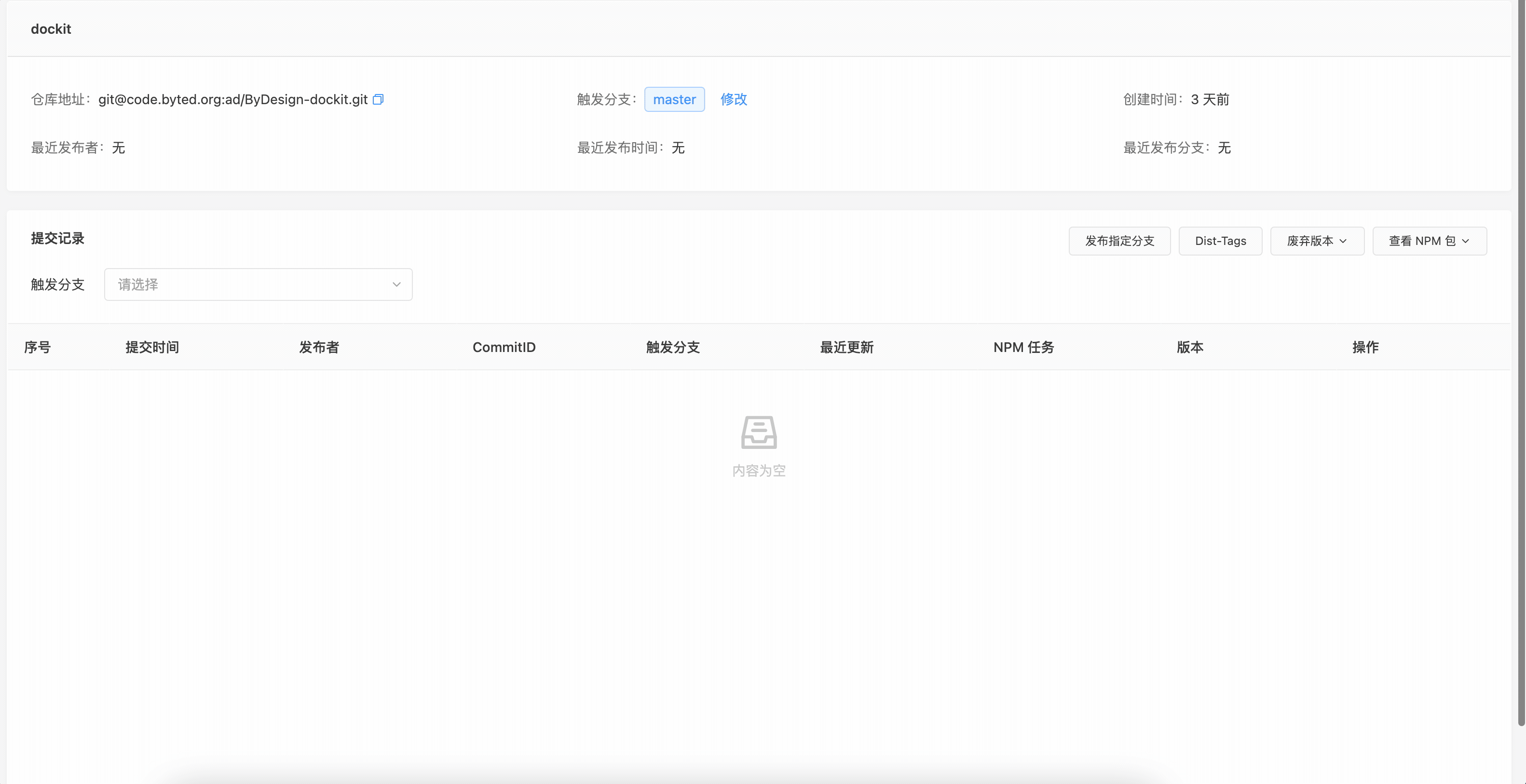

Of course, you can also use ByteDance’s internal AddOne platform to build, publish, and manage versions of npm packages online. Compared with command-line publishing, it is more standardized and better for package maintenance. Learn more.


Summary

By now, you should have a certain understanding of module standards and know how to design modules in common scenarios. Here is a summary:

References

Share this post on:
Share this post via WhatsAppShare this post on FacebookShare this post on XShare this post via TelegramShare this post on PinterestShare this post via Mail
Previous Post
Optimizing zsh Cold-Start Performance (Oh My Zsh)
